Non-Shrink Grout – High-Strength

High-Strength Non-Shrink Structural Grout

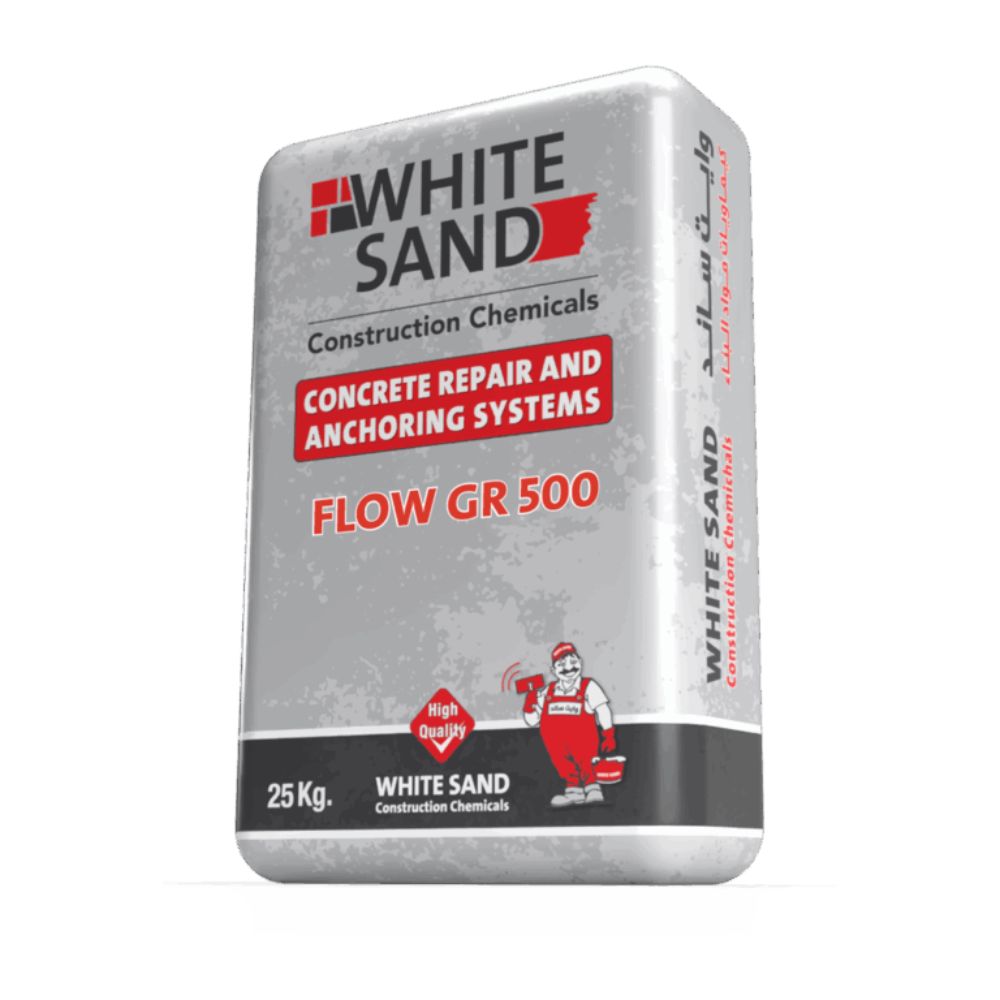

FLOW GR 500 is a multi-purpose, high-strength, non-shrink and non-metallic cementitious grout developed for high-performance structural grouting.

The ready-to-use powder requires only the addition of clean water to produce a highly flowable grout with high early strength, strong adhesion to steel and concrete, low permeability and no bleeding.

FLOW GR 500 is suitable for machinery foundations, base plates, structural steel, precast concrete, anchor bolts, bridge and road maintenance and void filling. It can be applied at thicknesses from 5-100 mm and complies with ASTM C1107 Grade A and EN 1504-3 class R4.

Check the FAQ section

Order on WhatsApp

Properties

Technical Data

Properties

Property	Value
Type	One-component high-strength cementitious structural grout
Color	Grey
Mixing Water	Approximately 3.8 litres per 25 kg bag
Wet Density	Approximately 2.2 kg/l
Setting Time	Approximately 4 hours at 23°C
Application Thickness	5-100 mm
Compressive Strength after 7 Days (ASTM C109)	≥ 50 MPa
Compressive Strength after 28 Days (ASTM C109)	≥ 65 MPa
Flexural Strength after 28 Days (ASTM C348)	≥ 9 MPa
Bond Strength after 7 Days	≥ 1 MPa
Bond Strength after 28 Days	≥ 2 MPa
Flowability at 0 Minutes (ASTM C1437)	≥ 300%
Flowability at 30 Minutes (ASTM C1437)	≥ 280%
Bleeding (ASTM C940)	Nil
Expansion (ASTM C827)	Up to 3%
Chloride Content	Nil
VOC Content (ASTM D2369)	Approximately 10 g/l; LEED compliant
Standards and Classification	ASTM C1107 Grade A and EN 1504-3 class R4
Packaging	25 kg paper bag
Shelf Life	12 months under recommended storage conditions

Technical Data

Uses

Grouting beneath equipment and machinery base plates.
Filling thick-section voids beneath structural base plates.
Grouting and anchoring structural-steel members.
Grouting and anchoring precast-concrete members.
Filling voids between existing and new concrete.
Repair work in precast concrete elements.
Anchoring bolts, stanchion bases, masts and fence posts.
Foundations for machinery and equipment.
Micro-concreting in bridge and road-maintenance operations.
Filling voids between pipes and concrete in manholes and water tanks.
Suitable for pumping and pouring applications.

Advantages

High-strength, non-shrink structural grout.
High early-strength development at flowable consistency.
High compressive and flexural strength.
High bond strength to steel and concrete.
Adjustable flowable or plastic consistency.
Suitable for pumping and pouring.
Low permeability.
Relatively low exothermic heat during thick-section grouting.
Suitable for Middle Eastern climatic conditions.
No bleeding.
Contains no chloride.
Low VOC and emissions.
Classified as R4 according to EN 1504-3.

Standards Compliance

Complies with ASTM C1107, Grade A.
Complies with EN 1504-3, class R4.
Compressive strength tested according to ASTM C109.
Flexural strength tested according to ASTM C348.
Flowability tested according to ASTM C1437.
Bleeding tested according to ASTM C940.
Expansion tested according to ASTM C827.

Substrate Preparation

The substrate must be sound, clean and free from dust, oil, grease, laitance and contaminants.

Thoroughly saturate absorbent concrete surfaces using clean water. Remove standing and excess water before placing the grout.

Steel surfaces must be free from rust, mill scale, oil and grease. Formwork must be watertight, rigid and sufficiently strong to prevent leakage or deformation.

Mixing

Use approximately 3.8 litres of clean water for each 25 kg bag.
Place the measured water in a suitable mixing container.
Slowly add FLOW GR 500 powder while mixing continuously.
Use a grout mixer or slow-speed drill fitted with a high-shear paddle.
Mix for at least three minutes until homogeneous and uniform.
Do not divide the packs or attempt partial mixing.
During hot weather, condition the bags in a cool place and use chilled mixing water.
Keep the mixed-grout temperature below 30°C.
Use chilled water for large pockets and thick-section grouting.

Placement

Place the grout immediately after mixing.
Pour continuously from one side only.
Arrange the pour so the grout travels the shortest practical distance.
Allow displaced air to escape freely.
Maintain a continuous hydrostatic head during base-plate grouting.
Keep exposed grout surfaces to the minimum practical area.
Shade base plates and foundations from direct sunlight during hot weather.

Application Thickness

Minimum recommended thickness: 5 mm.
Maximum normal thickness: 100 mm.
For sections thicker than 100 mm, add 10 kg of clean, washed 6-10 mm aggregate to each 25 kg bag.

Precautions

Maintain the grout, substrate and contacting elements at a temperature between 5°C and 35°C.
Do not add excessive water.
Do not use water at a temperature that causes bleeding or segregation.
Do not retemper grout that has begun to set.

Curing

Protect exposed surfaces from rapid water loss using continuous water curing, wet hessian or a suitable WHITE SAND-CURE curing compound.

Cleaning

Clean tools immediately after use using clean water. Hardened material must be removed mechanically.

Storage and Shelf Life

FLOW GR 500 has a shelf life of 12 months when stored in its original sealed packaging in a dry, shaded place under suitable warehouse conditions at a temperature below 35°C.

Packaging

25 kg paper bags.

Health and Safety

Wear suitable protective gloves and safety goggles.
Avoid contact with the skin and eyes.
Wash skin contact immediately using soap and clean water.
Rinse eye contact immediately with plenty of clean, cold water.
Seek medical advice if irritation continues.
The product is non-flammable.
Follow applicable local disposal regulations.

Quality and Technical Support

WHITE SAND products are developed and manufactured under a quality-oriented product-development process and an independently certified quality management system.

WHITE SAND provides technical assistance regarding grout selection, formwork, aggregate addition, mixing, pumping, placement and curing.
